EB DIY Capsule Space House L shape extension with 2 bedrooms (70.2㎡)

EB DIY  Capsule Space House

Model: L shape extension with 2 bedrooms(70.2㎡)

EB has pioneered the product series of “RGB” space capsules and prefabricated houses, aiming to create an easy-to-build house for consumers through a sci-fi visual and highly efficient DIY assembly methods. The product itself features heat preservation and energy conservation, moisture-proof and anti-corrosion, low carbon and environmental protection, sound insulation and wind resistance, durability and easy maintenance, etc. It also offers customized services for space dimensions, shapes and the number of floors. It is widely applied in scenarios such as personal residences, campsites, resorts, farms, and amusement parks, integrating local cultural characteristics with modern technological design Spaces, allowing people to experience the magnificent beauty of nature in comfort.

Product details:

External dimension: L13.5M*W7M*H3.3M

Internal dimension: L13M*W6M*H2.5M

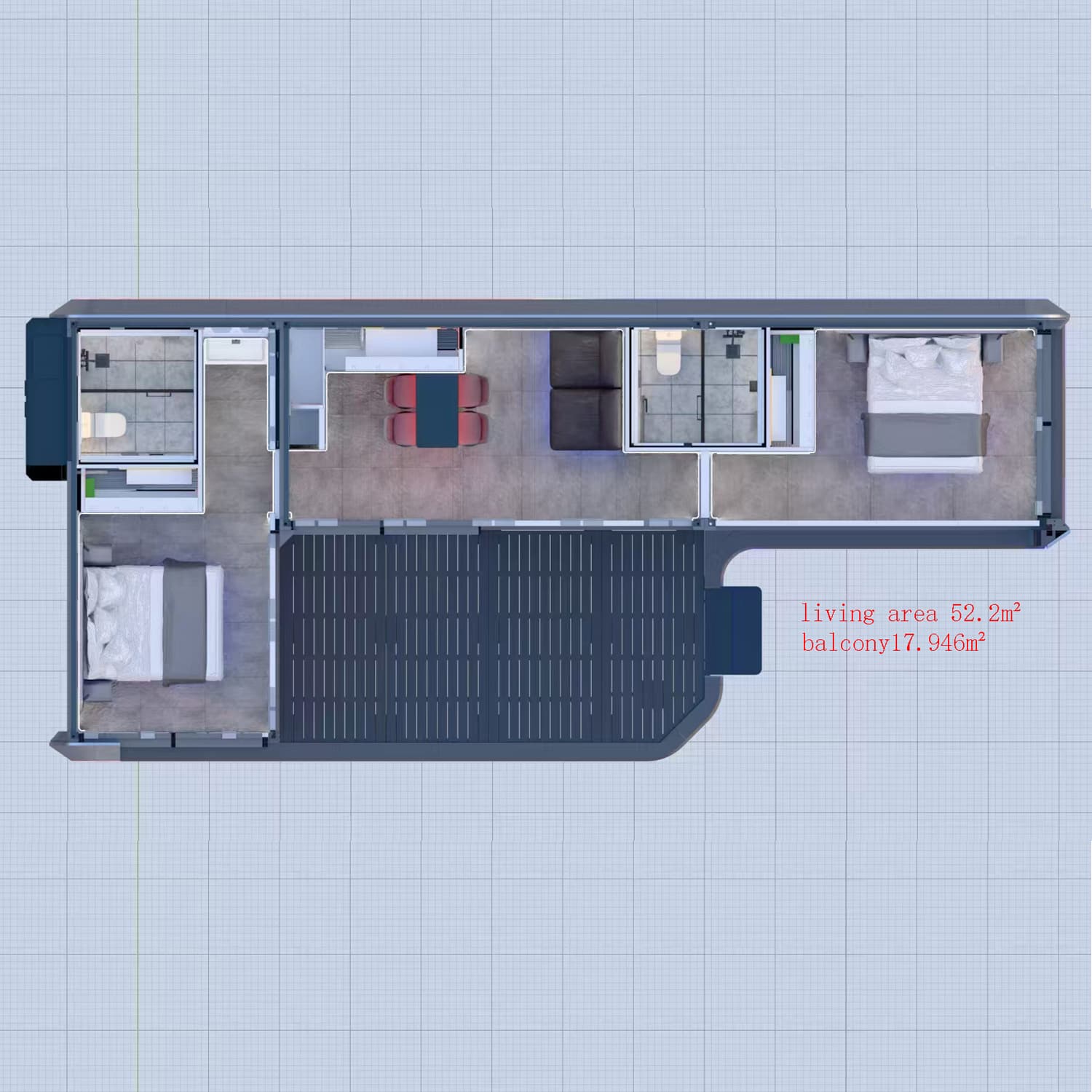

Indoor area:52.2m²   Terrace area :18m²

Cabin weight: 10000kgs

Steel structure: galvanized steel frame square tube (thickness: 3mm)

Wall: EPS Sandwich Panel/Rock wool board panel (thickness 75mm)

Floor: Steel Sheet(3mm) & base Fiber Cement Board+SPC wooden floor 12mm

Roof: Steel Sheet(3mm) & EPS Sandwich thickness (50mm)

Windows: Aluminum alloy window frame+(6mm+12A+6mm) Double layer glazed LOW E tempered glass

Doors: Steel door/Glass door

Wind resistant: 11~12 Level (0.6kN/㎡)

Sound insulation: <40dB

Heat Preservation: 0.1 W/(m²·K) (cut winter heat loss by 60%-70% and reduce summer indoor temperatures by 3-5°C )

Earthquake resistance: 8 grade

Fireproof: A calss /120 Mins

Floor load capacity: ≥ 200KGS/㎡

Life span:  50 years  (Regular maintenance)

Unit of loading into a 40 feet HQ container: 1 set

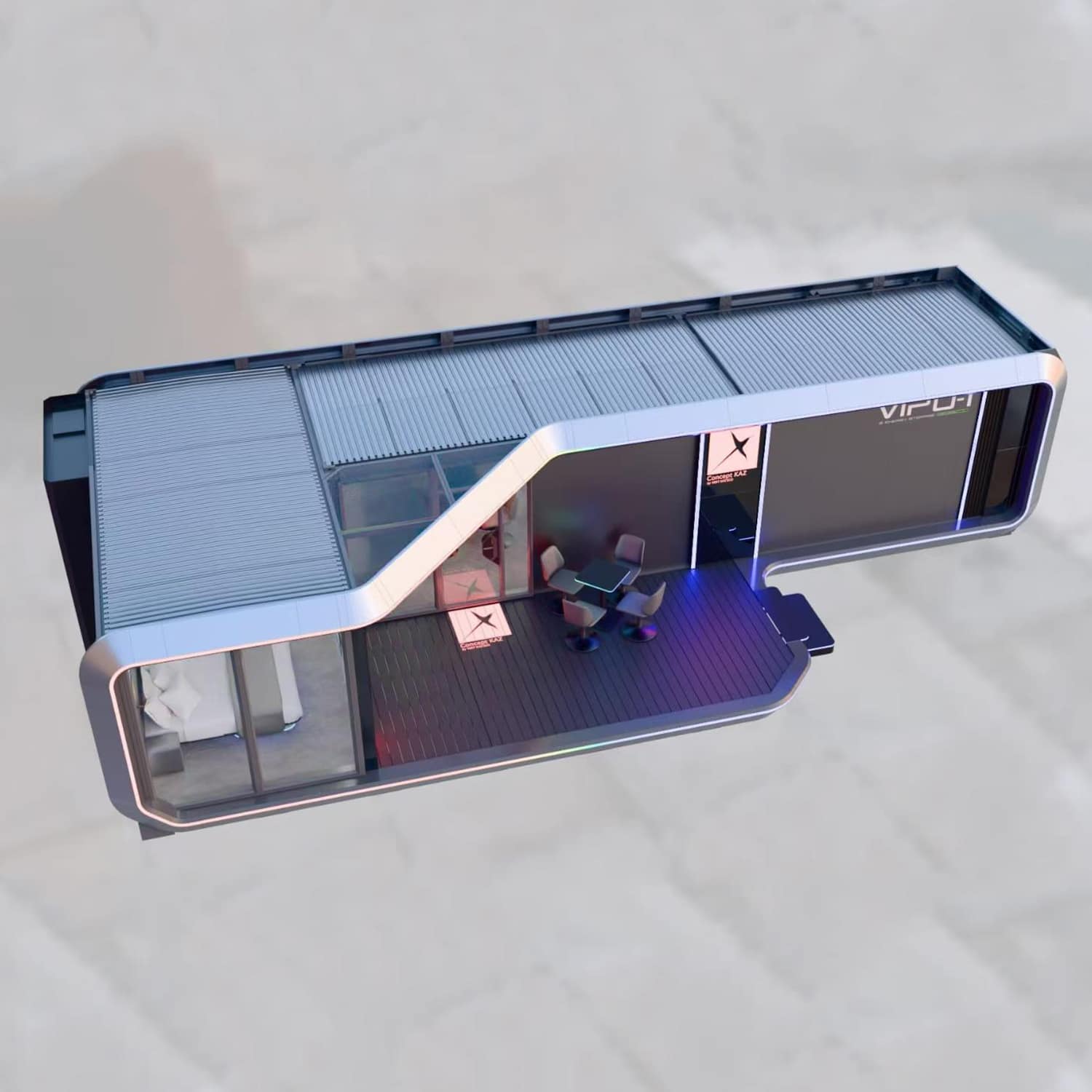

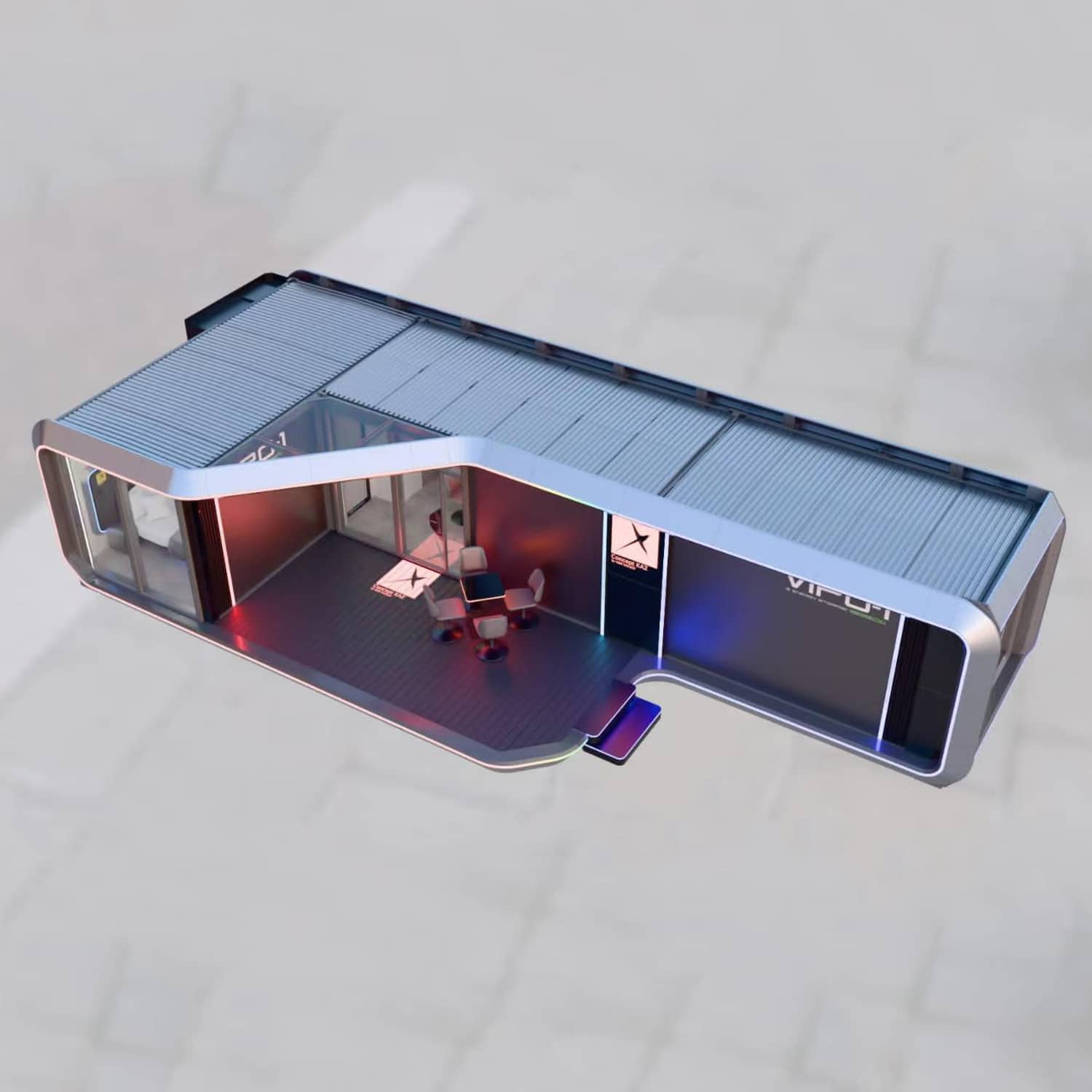

Other reference photos:

The price include:

1.Cabin*1 set

2.External and internal aluminum RGB decoration panel*1 set

3.Toilet & shower equipment 2 in 1 bathroom*2 set

4.Towel rack*4pcs

5.LED control equipment*2set

6.Wall mirror&Sink*1set

7.Pantry*1 set

8.Dining chair*3pcs

9.Dining table*1pc

 10.Two seats sofa*1pc

11.Wardrobe*2sets

12.TV decoration panel*2 set

13.LED bed head panel *2pcs

14.Bedside table*4pcs

15.RGB King bedstead(1.8X2M) *2pcs

16.Terrace*1 set

17.Manual blackout curtains*1 set

The price have not include:

1.All internal home appliance (Such as refrigerator, air conditioning, water heater, washing machine, dryer, kettle, induction cooker, microwave oven,  TV, electric motorizes curtain, solar energy etc.) ;

2.The mattress;

3.All wires are not included;

The items have not included can be sourced by EB on behalf of clients and placed in containers for shipment.

EB DIY Capsule space house has strong customization capability.  No matter what size, shape, elements you need, how many bedrooms, your preferred layout, from single story to three-story, we can customize for you! Welcome to inquire.

Shipment term: EXW (China)

Lead time: 50 to 60 days upon received deposit.
